REGUPOL safety floors and elements for shooting ranges
For indoor and outdoor facilities
Handling firearms requires extreme concentration. After all, the intention is to hit the desired target. Make your shooting range safer with our REGUPOL safety floors and elements. If a shot misses the target, there is considerable danger from ricochets and rebounds. Our safety floors and safety elements for shooting ranges safely absorb bullets or redirect them towards the bullet trap. REGUPOL is used in both indoor shooting facilities and in open air ranges.
We have both permanently installed safety floors and wall panelling on offer, as well as flexible application products to improve, expand or mobilise your bullet trap solutions. Read more here about which areas of application our REGUPOL products are suitable for in shooting ranges. The products are developed and intended for the application described here. Use of the product for other purposes may lead to safety issues. If in doubt, please contact us.

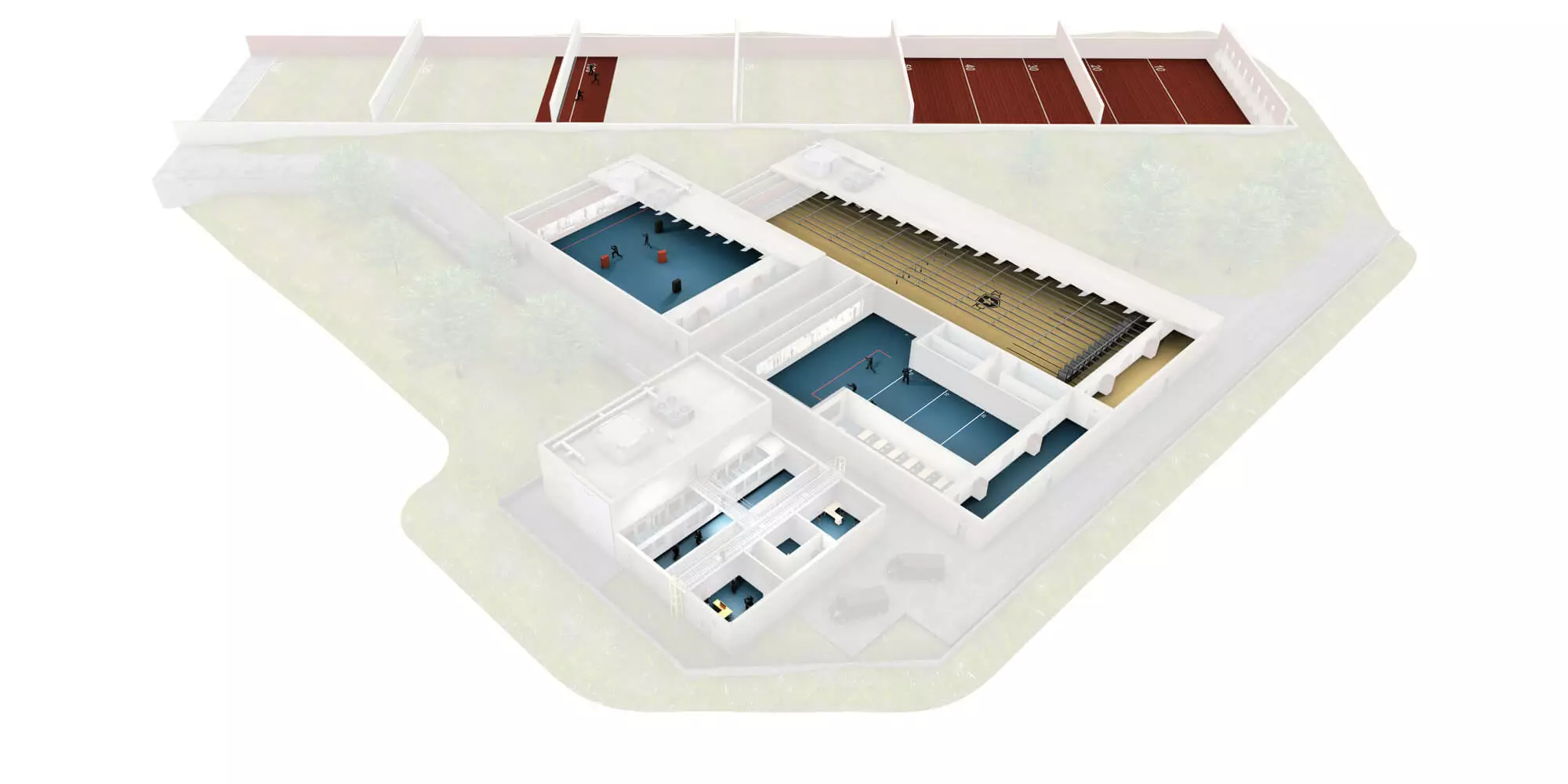

Floors
Our seamless safety floor can be wet cleaned, preventing unburnt propelling charges from settling in any joints.

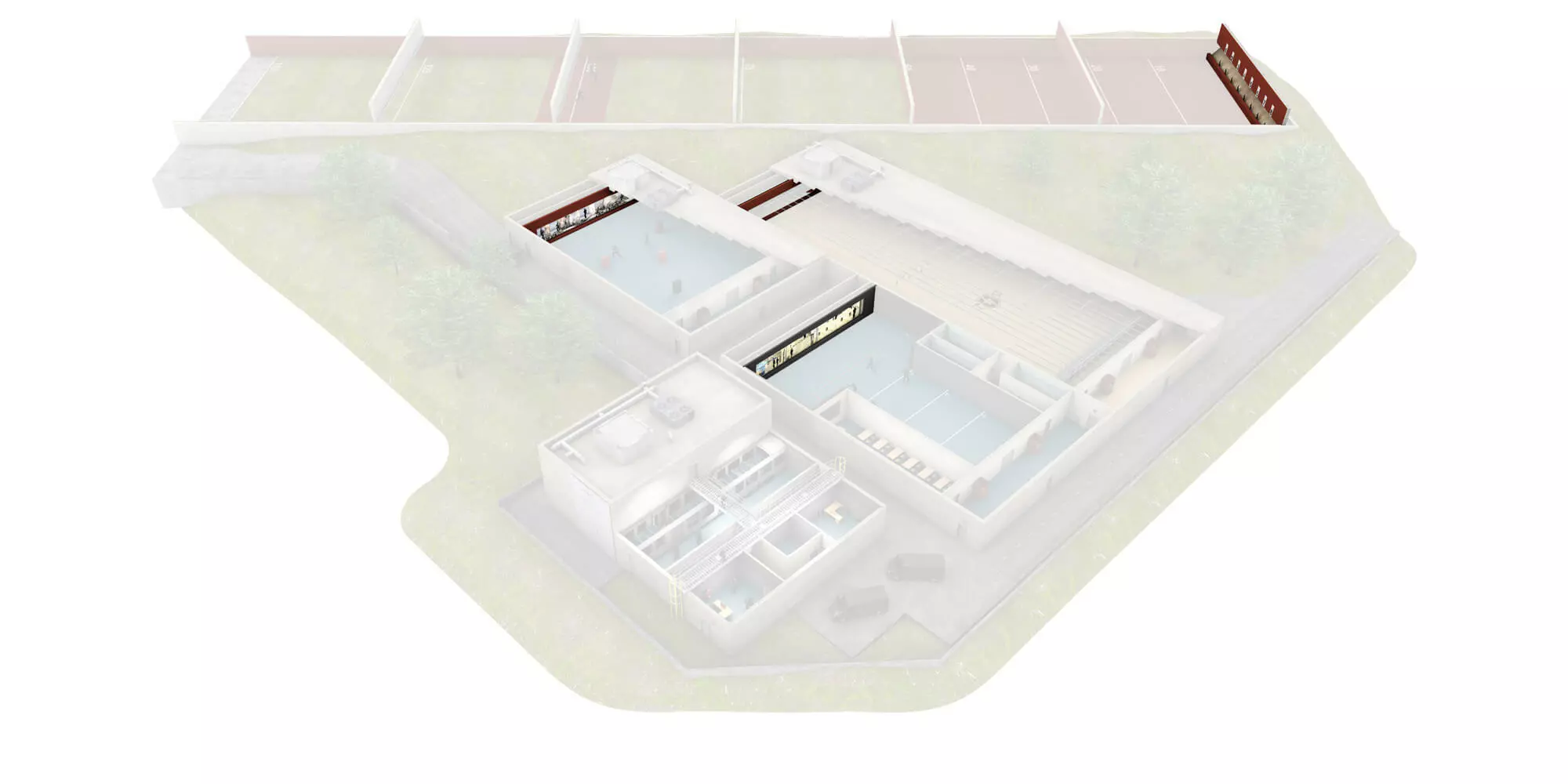

read moreBullet trap
Our REGUPOL safety elements provide reliable protection from ricochets and rebounds at your shooting range.

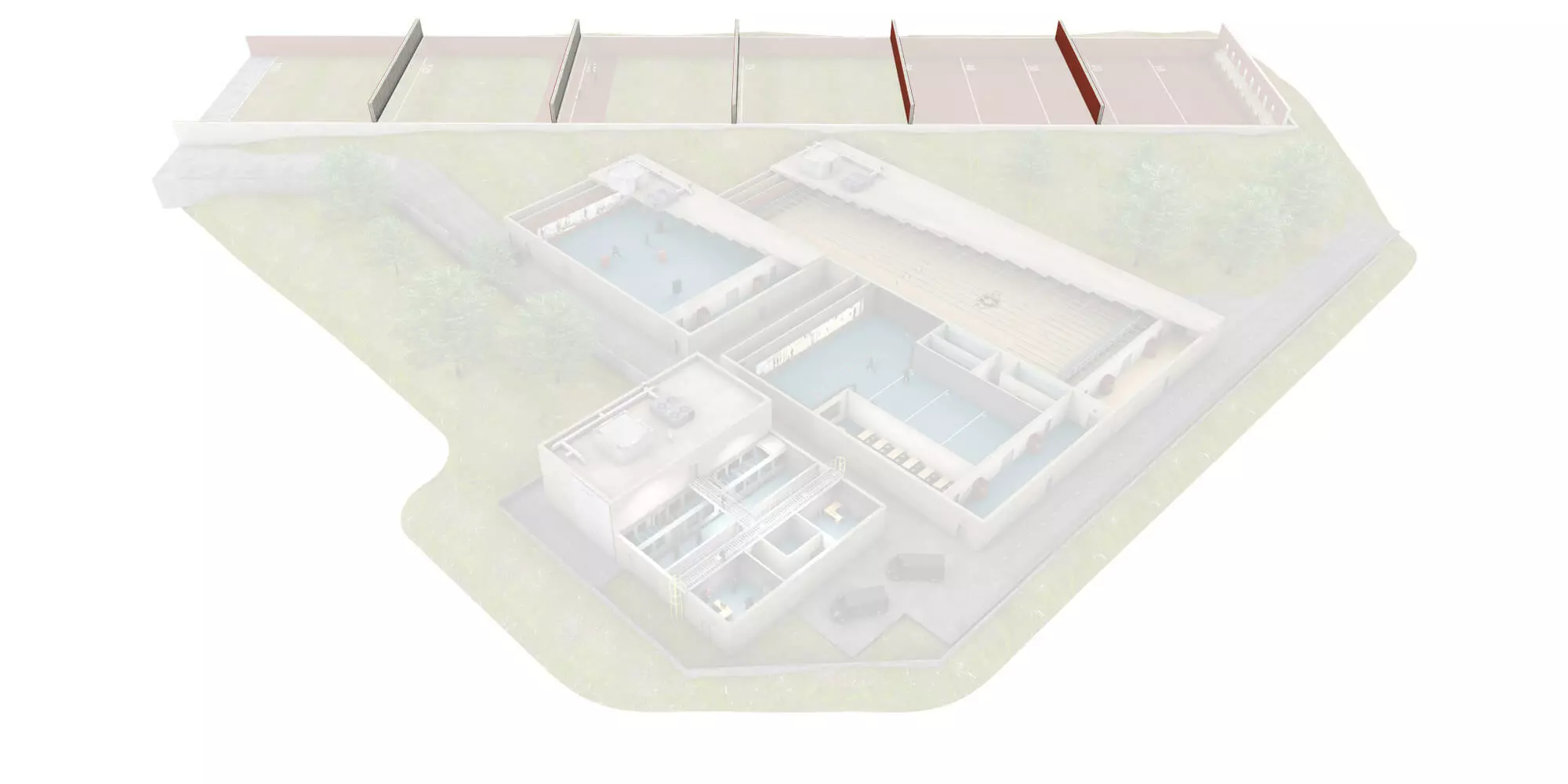

read moreOverhead baffles
Our REGUPOL safety elements as cladding for overhead baffles in outdoor installations are durable and weatherproof.
read moreMultiple Use
You can use our versatile REGUPOL safety elements for many different purposes in your shooting range - permanently installed or for flexible use.

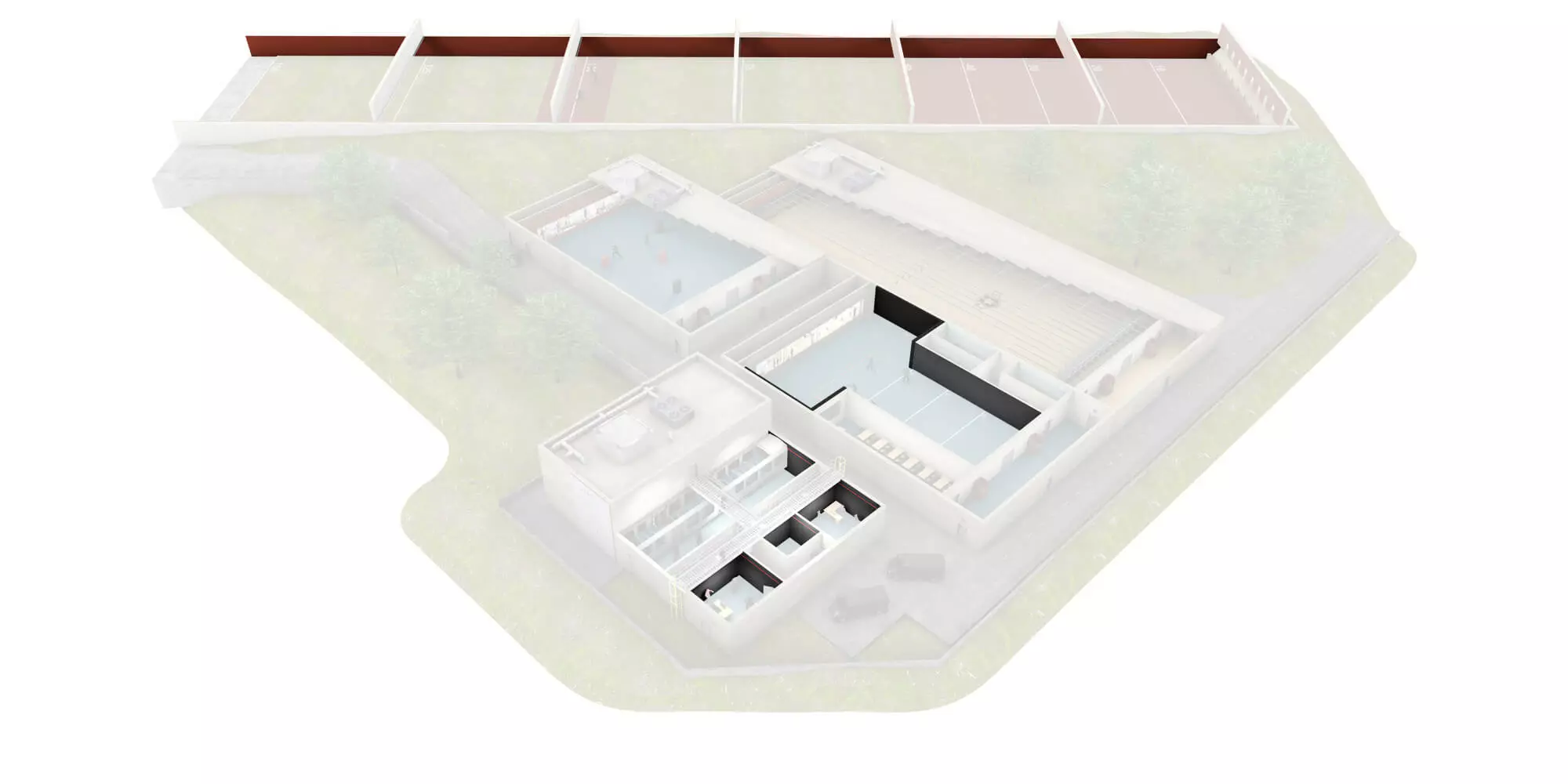

read moreWall and ceiling
REGUPOL safety elements reliably absorb projectiles and prevent them re-entering the shooting chamber.
read moreApplications
"Various REGUPOL products have been in use at our two locations in Germany for many years. For example, several of our indoor shooting ranges are equipped with REGUPOL ballistic safety floors. I am impressed by the aspects that the floor combines: it reliably absorbs missed shots, is extremely non-slip and easy to clean. REGUPOL's comprehensive services round off the overall package."
Michael Vogel, Managing Director of Jagd & Schiesssportzentrum Vogel GmbH
Your contact at REGUPOL
We're here to help.
Jan Weber
REGUPOL Germany GmbH & Co. KG
Sales Director International
Frequently Asked Questions About Our Shooting Ranges
REGUPOL ballistic FH45 and REGUPOL ballistic E43 are safety solutions for shooting ranges. Both products have been developed to reliably prevent ricochets and stray bullets and to enhance safety in shooting ranges, indoor shooting facilities and training centres.
The main difference lies in their intended use: REGUPOL ballistic FH45 is a seamless safety flooring system for indoor shooting ranges. REGUPOL ballistic E43 is a resilient safety panel for walls, ceilings, bullet traps, high screens and other safety-critical areas, both indoors and outdoors.
| Criterion | REGUPOL ballistic FH45 | REGUPOL ballistic E43 | |
|---|---|---|---|
| Product type | Seamless safety flooring | Resilient safety tile | |
| Main area of application | Flooring in indoor shooting ranges | Walls, ceilings, bullet traps, high screens | |
| Indoor/outdoor applications | Indoor | Indoor and outdoor | |
| Surface | Solid PU wear layer | Elastic tiles | |
| Main function | Safe, easy-to-clean shooting range flooring | Prevention of ricochets on walls, ceilings and protective surfaces | |
| Refurbishment | Retopping and partial repairs possible | Individual elements easily replaceable | |
| Design | Colours, markings and logos possible | Functional protective cladding, logos possible |
Both products are suitable for all types of shooting ranges, training centres and safety-critical shooting areas. REGUPOL ballistic FH45 is used in particular in indoor shooting ranges where a safe, durable, slip-resistant and easy-to-clean floor is required.
REGUPOL ballistic E43 is suitable for shooting ranges, training facilities, bullet-trapping systems, overhead baffles, loading and unloading areas, weapon cleaning areas and ballistics laboratories. The product can be used both indoors and outdoors and is weather-resistant.
Typical user groups include the police, the military, special forces, security companies, commercial operators, hunting clubs and sport shooters.
REGUPOL ballistic FH45 is suitable for the floor of an indoor shooting range. The system was specially developed as a seamless indoor safety floor. It safely absorbs projectiles and prevents ricochets and stray shots at floor level.
The closed PU wear layer also prevents unburned propellant residues, dirt or other contaminants from penetrating the joints. This is particularly important because powder residues could settle in open joints and ignite.
REGUPOL ballistic E43 is suitable for walls, ceilings, bullet-stop areas, high screens and other protective areas. This elastic safety panel prevents ricochets and stray bullets in both indoor and outdoor environments.
Typical applications include:
Wall cladding in shooting ranges
Ceiling cladding
Bullet-trap systems
Overhead Baffles
Loading and unloading areas
Weapon cleaning areas
Ballistics laboratories
Yes. Both REGUPOL ballistic FH45 and REGUPOL ballistic E43 have been ballistics-tested for most common calibres and bullet types. These include, amongst others, 5.56, 7.62, 9 mm and 4.6 x 30. In the case of REGUPOL ballistic FH45, additional calibres and bullet types such as .22, .460 and .38 Special are also specified.
Both systems have been tested for impacts in the range of 200 to 7,000 joules.
| Product Feature | REGUPOL ballistic FH45 | REGUPOL ballistic E43 |
|---|---|---|
| Area of application | Flooring for indoor shooting ranges | Walls, ceilings, bullet traps, indoor & outdoor |
| Material | PUR binder, synthetic rubber components, PUR coating | Synthetic rubber fibres with PUR binder |
| Thickness | approx. 45 mm | approx. 43 mm |
| Weight | approx. 40 kg/m² | approx. 35 kg/m² |
| Dimensions | On-site installation | 1,000 x 500 x 43 mm |
| Slip resistance | R 10 in accordance with DIN 51130 | R 10 in accordance with DIN 51130 as an outdoor floor covering |
| Electrostatic behaviour | < 2 kV in accordance with EN 1815 | < 2 kV in accordance with EN 1815 |
| Fire classification | Bfl-s1 in accordance with EN 13501-1 / EN 9239-1 | E in accordance with EN 13501-1 |
| Impact sound reduction | approx. 17 dB in accordance with DIN EN ISO 10140 | Gunshot noise reduction |
| Ballistic testing | common calibres/projectile types, 200 to 7000 joules | common calibres/projectile types, 200 to 7000 joules |
| Proof of suitability | General building authority approval | not specified |
REGUPOL ballistic FH45 offers shooting range operators many advantages, particularly thanks to its seamless surface. For example, dirt, gunpowder residue and unburned propellant cannot become embedded in the surface. This makes cleaning easier and reduces the maintenance required. Furthermore, the flooring is hard-wearing, waterproof and slip-resistant.
Further advantages include slip resistance class R 10, fire classification Bfl-s1, ballistics testing for various calibres, the ability to be refurbished, and customisation options with colours, markings and logos. Installation is carried out by qualified REGUPOL specialists. Specialised technical solutions are also available.
REGUPOL ballistic E43 provides reliable ricochet prevention thanks to its elastic material. The safety panel is durable, weather-resistant and easy to install. Individual elements can be replaced quickly and easily.
In addition, the material reduces shooting noise and offers consistent material quality. This makes REGUPOL ballistic E43 particularly suitable for all types of training centres, government facilities, military installations and other professional shooting ranges.
REGUPOL ballistic FH45 is particularly easy to clean. Loose dirt can be vacuumed up or swept away; wet cleaning can then be carried out. Suitable cleaning products are available for the system for both routine and deep cleaning. Cleaning instructions are included as standard. Repairs and refurbishment are also possible. Individual bullet holes or areas of damage can be repaired by users or operators using a repair kit. In the event of long-term wear and tear, the floor does not usually need to be completely replaced. Instead, it can be sanded down and recoated. This retopping can also be carried out on individual sections.
With REGUPOL ballistic E43, the main maintenance advantage lies in the ease with which individual panel elements can be replaced. This allows damaged or worn areas to be replaced on a selective basis.
REGUPOL ballistic FH45 and REGUPOL ballistic E43 fulfil different roles within a shooting range. REGUPOL ballistic FH45 is the specialist solution for seamless safety flooring in indoor shooting ranges. REGUPOL ballistic E43 is the flexible safety panel for walls, ceilings, bullet traps, overhead baffles and other protective areas.
Together, both products offer a comprehensive safety concept for shooting ranges: they reduce ricochets and stray bullets, enhance operational safety, support cost-effective maintenance and are suitable for professional applications with public authorities, the military, security companies, hunting associations, sport shooters and commercial operators.
REGUPOL ballistic B200 and REGUPOL ballistic B500 are shooting blocks made from elastic rubber material, designed for use in bullet-trapping systems in shooting ranges. They safely catch bullets and prevent ricochets and stray shots.
The blocks are suitable for use in bullet-trapping systems in both indoor and outdoor areas.
The difference in both shooting blocks lies primarily in size, weight and design:
• REGUPOL ballistic B200: more compact, versatile in terms of dimensions
• REGUPOL ballistic B500: larger and heavier, with hollow chambers
Both systems can be combined and adapted to suit project requirements.
• long service life even with intensive use
• quick and easy installation
• modular and easily replaceable
• shallow installation depth
• weather-resistant, therefore suitable for indoor and outdoor use
• reduction in shooting noise
| Features | REGUPOL ballistic B200 | REGUPOL ballistic B500 |
|---|---|---|
| Dimensions | 500 x 300 x 200 mm | 500 x 500 x 250 mm |
| Weight | approx. 25 kg | approx. 43 kg |
| Material | Synthetic rubber with PUR binder | Synthetic rubber with PUR binder |
| Fire classification | E according to EN 13501-1 | E according to EN 13501-1 |
| Applications | Bullet traps, mobile systems, tactical areas, protection of technical components, 180° installations | Bullet traps, mobile systems, tactical areas protection of technical components, 180° installations |
Yes, there are product variants with different dimensions and densities to meet specific requirements. Click here to visit our product overview. Bespoke solutions are also available. Bespoke solutions are also available. We would be happy to advise you – please do get in touch.
