REGUPOL playfix FX
Product details
Our tried and tested dual-layer safety tile: universal and reliable, designed for fall heights of up to three metres.
The tiles are designed for fall heights of up to three metres and fulfil the highest possible standards for fall protection surfaces. Our REGUPOL playfix safety tiles achieve this fall protection effect through their dual-layer structure. The high-quality material guarantees stabile properties over very long periods of time. Whether on children’s or school playgrounds or any other leisure surface, once installed, our REGUPOL playfix safety tiles create a stabile, safe and barrier-free surface wherever falls can lead to the risk of injury. The rough surface structure of REGUPOL playfix safety tiles reduces the risk of slipping, even when the surface is wet. The water-permeable tiles dry out quickly after rainfall and are soon playable again. Drainage grooves on the tile underside ensure that water drains away quickly. Our REGUPOL playfix FX safety tile is also extremely easy to maintain.
Colour and pattern selection
EPDM granulate
Our products with an EPDM surface are available in numerous colours.
Minor discolouration may occasionally occur and is considered normal.
Red
Bright Red
Bright Orange
Pink
Lilac
Bright Blue
Blue
Dark Blue
Bright Green
Green
Dark Green
Eggshell
Yellow
Bright Yellow
Beige
Beige Brown
Brown
White
Grey
Middle Grey
Dark Grey
EPDM Mulch
Red
Brown-Beige
Green
Rubber Fibres
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.
Black
Green
Red
The REGUPOL
Flooring-Designer
Features
- Acoustics
- Safety
- Certified high-quality production
- Sustainable
- Hygiene
- Aesthetic
- Cannot be dispersed through play
- Water permeable
- Chlorine resistant
- Resistant to de-icing salt
- Certified
- Weather-resistant
- Can be cleaned
- Fire protective
- Slip-resistant
- Fast installation
- Lightfast
Technical Specifications

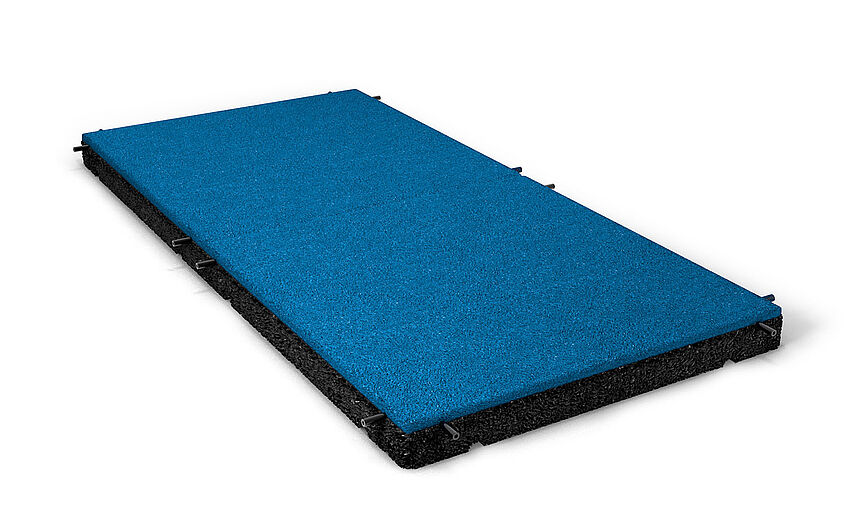

Material (EPDM)
Base layer: PUR binder, components made of synthetic rubber
Top layer: ethylene propylene diene (monomer) rubber used as EPDM granulate (coloured)
Dimensions / Weight / Maximum fall height (EPDM)
1,000x 500 x 30 mm | approx. 24 kg/m²
1,000x 500 x 50 mm | approx. 35 kg/m² / 1.50 m
1,000x 500 x 75 mm | approx. 46 kg/m² / 2.10 m
1,000x 500 x 110 mm | approx. 61 kg/m² / 3.00 m
Tolerances: Length/width +/- 1% | thickness +/- 2mm

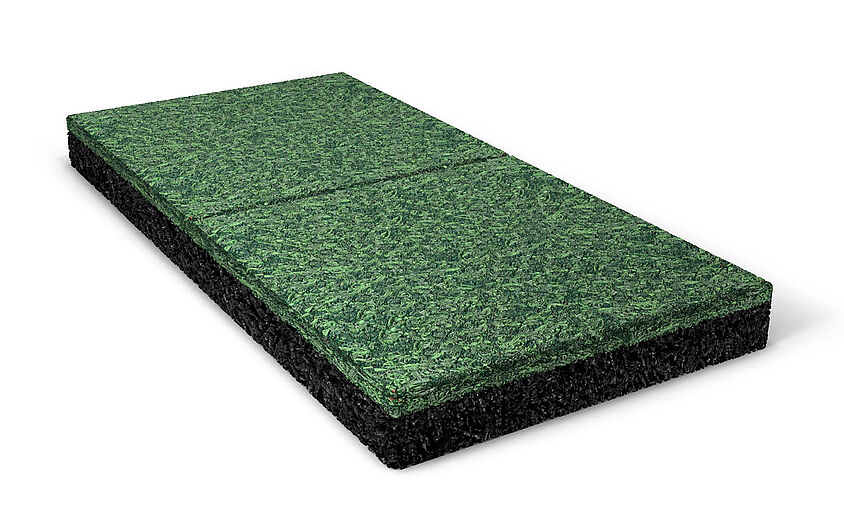

Material (Mulch)
Base layer: PUR binder, components made of synthetic rubber
Top layer: ethylene propylene diene (monomer) rubber used as EPDM fibres (coloured)
Dimensions / Weight / Maximum fall height (Mulch)
1,000 x 500 x 50 mm / approx. 35 kg/m²
Tolerances: Length/width +/- 1% | thickness +/- 2mm

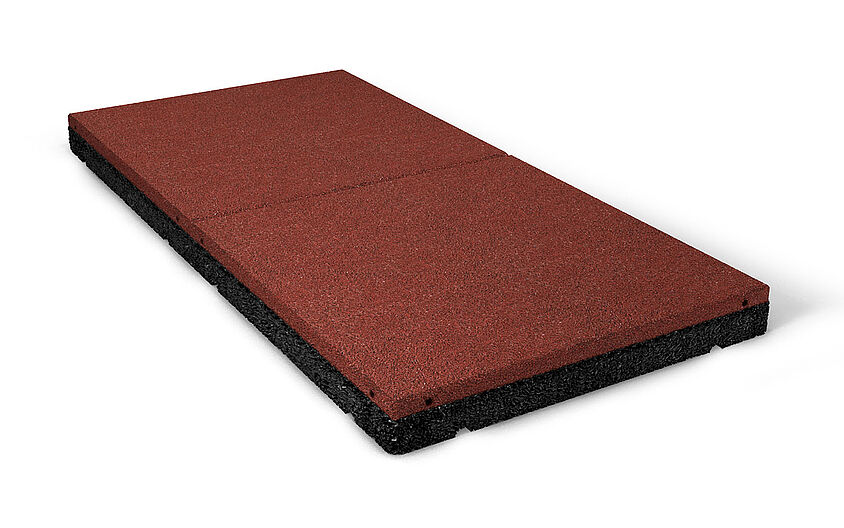

Material (rubber fibres)
Base layer: PUR binder, components made of synthetic rubber
Top layer: PUR binder, components made of synthetic rubber (coloured)
Dimensions / Weight / Maximum fall height (rubber fibres)
1,000 x 500 x 30 mm / approx. 24 kg/m² / 1.00 m
1,000 x 500 x 50 mm / approx. 29 kg/m² / 1.50 m
1,000 x 500 x 75 mm / approx. 39 kg/m² / 2.20 m
1,000 x 500 x 90 mm / approx. 46 kg/m² / 2.50 m
1,000 x 500 x 100 mm / approx. 51 kg/m² / 2.80 m
1,000 x 500 x 110 mm / approx. 56 kg/m²/ 3.00 m
Tolerances: Length/width +/- 1% | thickness +/- 2mm
Structure
Dual-layer structure, drainage grooves on the underside, central dummy joint on the top side, edges with dowel holes
(no drainage grooves for 30 mm)
Maximum fall height
EPDM | up to 3.00 m, fall protection testing in acc. with DIN EN 1177
Mulch | 1.50 m Impact attenuation test in acc. with DIN EN 1177
Rubber granluate | 1 to 3 m, depending on overall safety tile thickness,
Fall protection testing in acc. with DIN EN 1177
Accessories
Plug-in dowels, one-component adhesive sealant
Installation
On concrete, asphalt or compacted bed of crushed stone / gravel
Services
Online spatial simulation
Product sample service
Tender text/specification
individual consulting worldwide
internal quality certificates
On-site quality and function testing
Line marking and lettering application
Inlays and prints
Customized product development and design
Private labelling
Cleaning and maintenance
Repairs, re-topping and renovation
Equipment and accessories
External certification
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.
Downloads
Your contact at REGUPOL
We're here to help.
Olaf Brinkmann
REGUPOL Germany GmbH & Co. KG
Sales Manager International
REGUPOL playfix safety tiles: a double layer of fall protection
REGUPOL playfix FX safety tiles consist of two layers. The tile’s coloured wear layer is 10 mm thick. The lower, softer base layer provides the required elasticity. The thickness of this lower layer depends on the fall height that needs to be attained. The critical fall height is determined for each individual tile thickness and documented in a test report. The independently tested and certified fall protection values for our REGUPOL playfix safety tiles guarantee the necessary safety for the entire playing area, even in sensitive places. In contrast to loose fall protection materials, REGUPOL playfix safety tiles cannot be “played away” and dispersed, which means there is uniform fall protection over the entire play ground surface.
