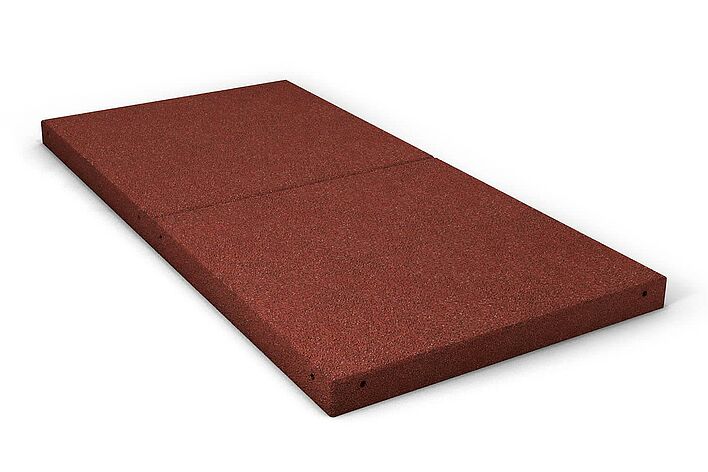

REGUPOL playfix E
Product details
This single-layer elastic tile is ideal for all areas that need robust elastic surfaces, but where fall protection properties are not required.
Our REGUPOL playfix E elastic tile is ideal for multi-purpose games courts where the main focus is on playing and having fun. They are elastic, robust and provide a surface which is easy on joints. They are almost identical to our REGUPOL playfix safety tiles in terms of material, shape and colour, but without having the tested fall protection properties. With a verified ball response value of 100%, nothing stands in the way of fast and furious ball games. At the same time, the elastic surface is sound absorbing and consequently minimises the noise caused by balls bouncing. On request, we can also apply lines, lettering, symbols and images to the surface, as well.
Colour and pattern selection
EPDM
Our products with an EPDM surface are available in numerous colours.
Red
Bright Red
Bright Orange
Pink
Lilac
Bright Blue
Blue
Dark Blue
Bright Green
Green
Dark Green
Eggshell
Yellow
Bright Yellow
Beige
Beige Brown
Brown
White
Grey
Middle Grey
Dark Grey
Rubber granulate
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.

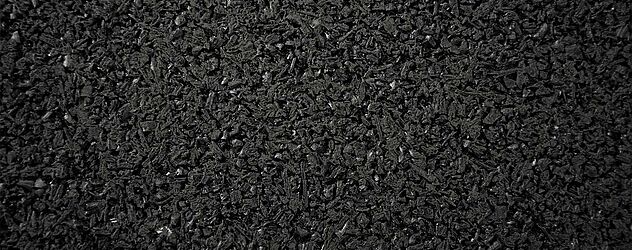

Black

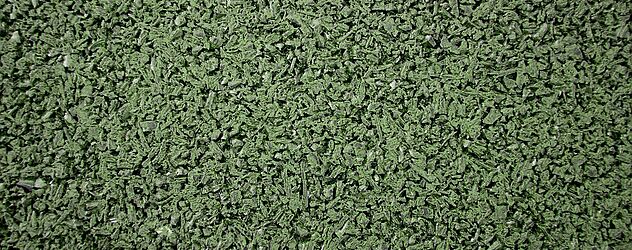

Green

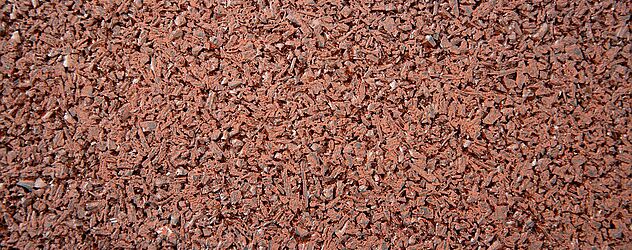

Red brown
Rubber fibres
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.
Black
Green
Red Brown
The REGUPOL
Flooring-Designer
Features
- Acoustics
- Safety
- Certified high-quality production
- Sustainable
- Hygiene
- Cannot be dispersed through play
- Water permeable
- Resistant to de-icing salt
- Ball response characteristics
- Weather-resistant
- Can be cleaned
- Slip-resistant
- Fast installation
Technical Specifications
Material
PUR binder, components made of synthetic rubber (coloured) or ethylene propylene diene (monomer) rubber used as EPDM granulate
Material in the EU
Ethylene propylene diene (monomer) rubber used as EPDM granulate
Dimensions / Weight
1,000 x 500 x 15 mm | approx. 12 kg/m²
1,000 x 500 x 22 mm | approx. 18 kg/m²
1,000 x 500 x 30 mm | approx. 24 kg/m²
1,000 x 500 x 43 mm | approx. 35 kg/m²
Tolerances: Length/width +/- 1% | thickness +/- 2mm
Dimensions / Weight in the EU
1.000 x 500 x 43 mm / approx. 51 kg/m²
Tolerances: Length/width +/- 1% | thickness +/- 2mm
Tensile strength
With a thickness of 30 mm = 1004 kPa
With a thickness of 43 mm = 846 kPa
Elongation
With a thickness of 30 mm = 87 %
With a thickness of 43 mm = 53 %
Tear resistance
With a thickness of 30 mm = 10,5 N/mm
With a thickness of 43 mm = 6,6 N/mm
Compression test
With a thickness of 30 mm = 846 kPa
With a thickness of 43 mm = 718 kPa
Structure
Single-layer structure made of compacted, highly resilient material; drainage grooves on underside; edges with dowel holes (no dowel holes and drainage grooves for 15 mm and 22 mm)
Anti-slip behaviour
Complies with assessment group R10 (optional, R11 also possible). Certified by the DGUV.
Installation
On concrete, asphalt or compacted bed of crushed stone or
gravel, or simply on a level sub-base
Accessories
Plug-in dowels, Plug-in dowels, one-component adhesive sealant (no dowels possible for 15 mm and 22 mm)
Please note:
The MVVTB (Model Administrative Provisions – Technical Building Rules) and entry 50 of the REACH Annex XVII contain requirements products and floor surfaces have to meet. Please check to make sure that your intended application for our products conforms with these requirements.
Services
Online spatial simulation
Product sample service
Tender text/specification
individual consulting worldwide
internal quality certificates
Line marking and lettering application
Inlays and prints
Customized product development and design
Private labelling
Cleaning and maintenance
Repairs, re-topping and renovation
Equipment and accessories
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.
Your contact at REGUPOL
We're here to help.
Olaf Brinkmann
REGUPOL Germany GmbH & Co. KG
Sales Manager International
REGUPOL elastic tiles: elastic and versatile
REGUPOL elastic tiles are the ideal surface for kick-about pitches, streetball courts, table tennis tables and so much more. Our REGUPOL E elastic tile is available in a size of 2,000 x 1,000 mm. The large version of our elastic tile can also be laid on unbound sub-bases. Further advantages of our REGUPOL elastic tiles include their easy installation and cleaning.
