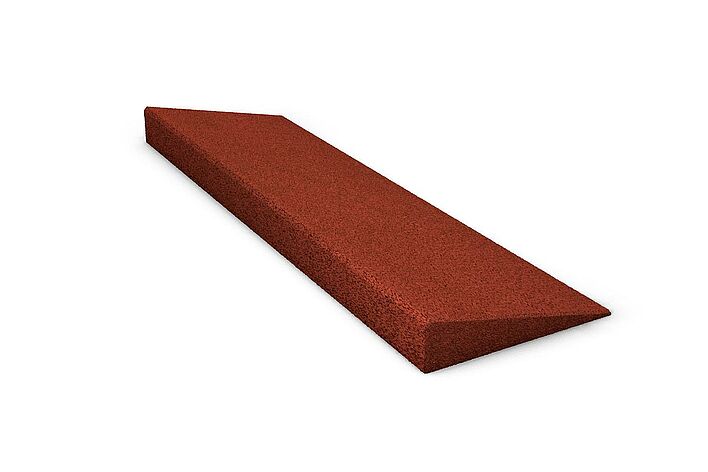

REGUPOL playfix slope
Product details
This ideal supplement to our safety tiles is used for providing barrier-free bordering on playing surfaces, rounding off edges and preventing accidental stumbling.
Playground surfaces should be safe all round. With our elastic anti-stumble edges, you can level off the edges around playing and sports areas. They are available in different heights to correspond to the height of the relevant fall protection safety tiles. The slope on the anti-stumble edges prevents accidents caused by stumbling over the safety tile edges and creates barrier-free access to the respective areas. And even if someone does fall, the all-round elasticity of the playing surface prevents the worst. We can also supply matching corner elements in the same elastic material as the anti-stumble edges, of course.
Colour and pattern selection
EPDM
Our products with an EPDM surface are available in numerous colours.
Minor discolouration may occasionally occur and is considered normal.
Red
Bright Red
Bright Orange
Pink
Lilac
Bright Blue
Blue
Dark Blue
Bright Green
Green
Dark Green
Eggshell
Yellow
Bright Yellow
Beige
Beige Brown
Brown
White
Grey
Middle Grey
Dark Grey
Rubber fibres
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.
Black
Green
Red Brown
Features
- Safety
- Certified high-quality production
- Sustainable
- Weather-resistant
- Can be cleaned
- Slip resistant
- Fast installation
Technical Specifications
Material
PUR binder, components made of synthetic rubber (coloured) or ethylene propylene diene (monomer) rubber used as EPDM granulate
Material in the EU
Ethylene propylene diene (monomer) rubber used as EPDM granulate
Dimensions / Weight
1,00 x 250 x 30/8 mm | approx. 4 kg/item
1,000 x 250 x 43/8 mm | approx. 5.5 kg/item
1,000 x 250 x 50/8 mm | approx. 6 kg/item
1,000 x 300 x 70/8 mm | approx. 10 kg/item
1,000 x 300 x 75/8 mm | approx. 10.5 kg/item
1,000 x 300 x 90/8 mm | approx. 12 kg/item
1,000 x 300 x 100/8 mm | approx. 13.5 kg/item
1,000 x 300 x 110/8 mm | approx. 14.5 kg/item
Corner elements
250 x 250 x 43/8 | approx. 0.6 kg/item
250 x 250 x 50/8 | approx. 0.7 kg/item
Tolerances: length/width +/- 1% | thickness +/- 2mm
Dimensions / Weight in the EU
1,000 x 250 x 30/8 mm | approx. 6.0 kg/item
1,000 x 250 x 43/8 mm | approx. 7.5 kg/item
1,000 x 250 x 50/8 mm | approx. 9.0 kg/item
1,000 x 300 x 75/8 mm | approx. 15.0 kg/item
1,000 x 300 x 100/8 mm | approx. 19.0 kg/item
1,000 x 300 x 110/8 mm | approx. 21.0 kg/item
Corner elements
250 x 250 x 43/8 | approx. 0.6 kg/item
250 x 250 x 50/8 | approx. 0.7 kg/item
Tolerances: length/width +/- 1% | thickness +/- 2mm
Installation
Just like REGUPOL playfix safety and elastic tiles
Please note:
The MVVTB (Model Administrative Provisions – Technical Building Rules) and entry 50 of the REACH Annex XVII contain requirements products and floor surfaces have to meet. Please check to make sure that your intended application for our products conforms with these requirements.
Services
Product sample service, Tender text/specification, individual consulting worldwide, internal quality certificates, Inlays and prints, Customized product development and design, Cleaning and maintenance, Equipment and accessories
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.
Your contact at REGUPOL
We're here to help.
Olaf Brinkmann
REGUPOL Germany GmbH & Co. KG
Sales Manager International
Anti-stumble edges - the great leveller
Our anti-stumble edges are genuine multi-talents. They don’t just round off surfaces fitted with safety tiles, but can also level out other raised edges and low steps. Laid against kerbstones, our anti-stumble edges can also serve as access ramps for wheel chairs or rollators. Here, the elastic material creates a safe, anti-slip surface which is weather-resistant and break-proof and can also withstand the weight of cars and vans. In addition, the non-slip underside and the wedge’s own weight guarantee a safe and stable surface underfoot.
