REGUPOL playfix sandpit
Product details
Elastic surround elements for sand pits and other games and sports areas. Our edging elements guarantee fun all round and in complete safety.
When it comes to edging around sand pits, trampolines or other spaces, our REGUPOL sand pit safety surrounds are a genuine weatherproof and non-rotting alternative to wood. In terms of safety, they are unbeatable and their elasticity ensures a high degree of protection in the event of falls. Our REGUPOL sand pit surrounds are made of highly compacted material, which makes these moulded products robust all-rounders that can be produced in various shapes. The material doesn’t get worn by the playing sand, doesn’t form splinters like other materials and is vandal proof. Additional benefits of our sand pit surround elements include that their surface dries very quickly and they are pleasantly warm to sit on. If 8 curved elements are laid together, they make up a circle of 2 metres in diameter. Safety all round - thanks to REGUPOL sand pit safety surrounds.
Colour and pattern selection
EPDM
Our products with an EPDM surface are available in numerous colours.
Minor discolouration may occasionally occur and is considered normal.
Red
Bright Red
Bright Orange
Pink
Lilac
Bright Blue
Blue
Dark Blue
Bright Green
Green
Dark Green
Eggshell
Yellow
Bright Yellow
Beige
Beige Brown
Brown
White
Grey
Middle Grey
Dark Grey
Rubber granulate
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.
Black
Green
Red Brown
Features
- Safety
- Certified high-quality production
- Sustainable
- Weather-resistant
- Can be cleaned
- Slip resistant
Technical Specifications
Material
PUR binder, components made of synthetic rubber (coloured) or ethylene propylene diene (monomer) rubber used as EPDM granulate
Material in the EU
Ethylene propylene diene (monomer) rubber used as EPDM granulate
Structure
Straight elements and curved 1/8 circle segments, rounded edges; plugs supplied to close bolt holes
Dimensions / Weight

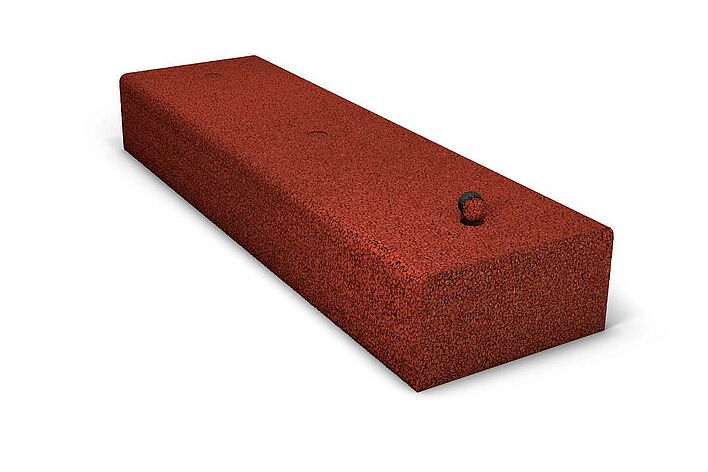

Straight block: 1,000 x 300 x 150 mm | approx. 40 kg/item

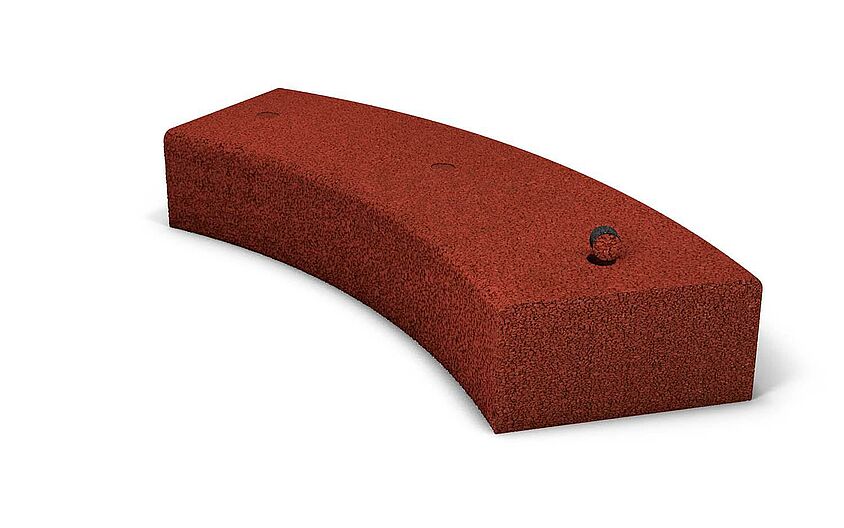

1/8 circle segment: 1,021/785 x 300 x 150 mm | approx. 37 kg/item
Circle internal diameter: 2.000 mm
Tolerances: length/width +/- 1% | thickness +/- 2mm
Dimensions / Weight EU
Straight block: 1.000 x 300 x 150 mm | approx. 54 kg/item
1/8 circle segment: 1.021/785 x 300 x 150 mm | approx. 50 kg/item
Circle internal diameter: 2.000 mm
Tolerances: length / width ± 1 % | thickness ± 2 mm
Staight block
Tensile strengh | 573 kPa
Elongation | 79 %
Compression test | 6,0 N/mm
1/8 circle segment
Tensile strengh | 925 kPa
Elongation | 94 %
Compression test | 9,2 N/mm
Installation
Bonding or bolting onto a concrete sub-base
Please note:
The MVVTB (Model Administrative Provisions – Technical Building Rules) and entry 50 of the REACH Annex XVII contain requirements products and floor surfaces have to meet. Please check to make sure that your intended application for our products conforms with these requirements.
Services
Product sample service, Tender text/specification, individual consulting worldwide, internal quality certificates, Inlays and prints, Customized product development and design, Cleaning and maintenance, Equipment and accessories
Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.
Your contact at REGUPOL
We're here to help.
Olaf Brinkmann
REGUPOL Germany GmbH & Co. KG
Sales Manager International
All-round safety: REGUPOL sand pit safety surrounds
REGUPOL sand pit safety surrounds create borders with the right ratio of elasticity to strength and can be used for enclosing sand pits and other sports areas, or as flowerbed borders or seating elements. Steps on sloped areas, stairways and other landscape design elements are also possible uses. The elastic surrounds are either bonded or bolted onto a concrete sub-base. The bolt holes on the upper side can be closed permanently and securely with our supplied plugs to give a uniform optical appearance to the exterior surface.
