REGUPOL climb FX
Product details

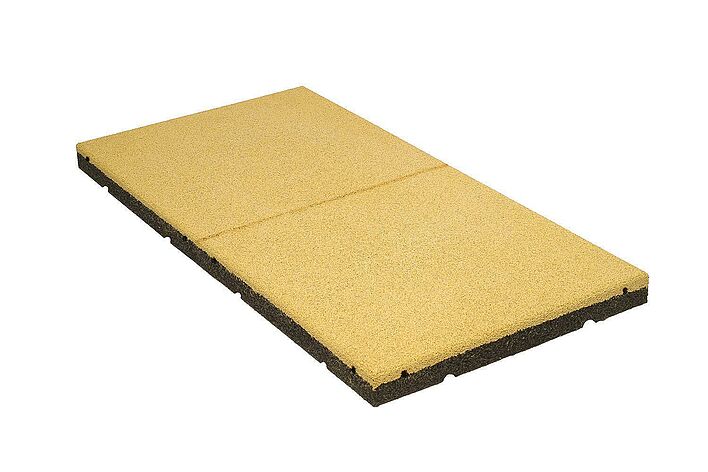

Our REGUPOL safety tile REGUPOL climb FX guarantees reliable safety in the event of falling from a climbing wall.
Impact reducing, reliable, and safe: That’s precisely what a floor in front of a climbing wall has to be. A clear mark of quality is its two-layer structure, which on the one hand ensures a secure footing and on the other guarantees elasticity. This means our REGUPOL climb FX safety tile combines the reliable reduction in the risk of injury from falling with a high level of user-friendliness and durability. This is a sport that can only really be fun when people feel safe – our contribution to this is REGUPOL climb flooring solutions.
Easy to install and long-lasting
Our REGUPOL climb FX safety tiles can be installed quickly and easily in outdoor areas underneath climbing walls and towers. They are bonded to the ground on a concrete or asphalt sub-base or laid on an unbound substructure using the plug-in dowel system and bonding of the joints. With proper use and care, these safety tiles will retain their functionality over many years. This completely weather-resistant REGUPOL climb FX safety tile is easy to clean and maintain, easy to replace and available in different thicknesses. In contrast to facilities where impact reducing pebbles or gravel is used, the climbing walls remain clean and are not worn by excessive abrasion (sandpaper effect).
Colour and pattern selection
EPDM granulates
Minor discolouration may occasionally occur and is considered normal.
Red
Bright Red
Bright Orange
Pink
Lilac

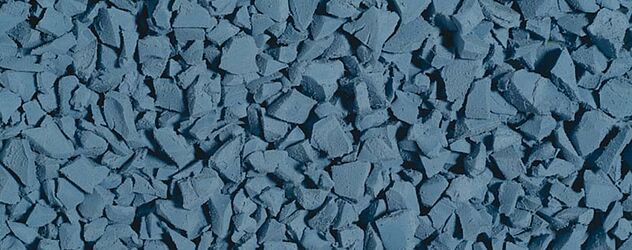

Blue
Bright Blue
Dark Blue
Bright Green
Green
Dark Green
Eggshell
Yellow
Bright Yellow
Beige
Beige Brown
Brown
White
Grey
Middle Grey
Dark Grey
EPDM Mulch

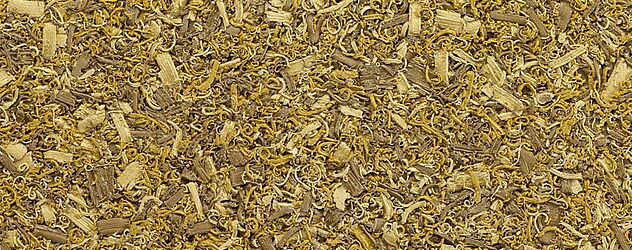

Brown-beige

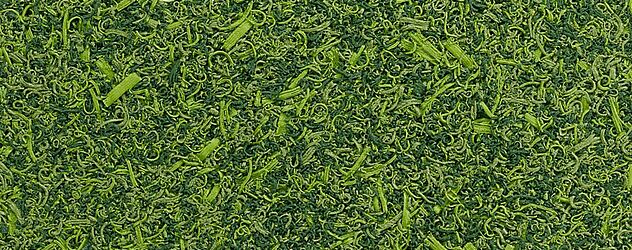

Green

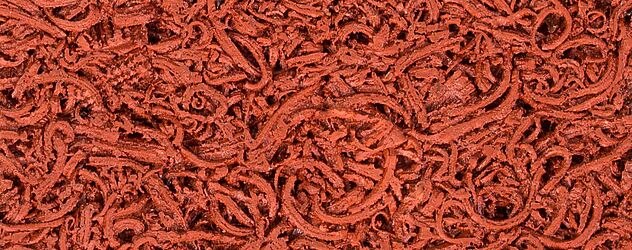

Red
Technical Specifications
Material (EPDM)
Base layer: PUR binder, components made of synthetic rubber
Top layer: EPDM granulate (coloured)
Material (Mulch)
Base layer: PUR binder, components made of synthetic rubber
Top layer: ethylene propylene diene (monomer) rubber used as EPDM fibres (coloured)
Dimensions / Weight / Maximum fall height (EPDM)
1,000 x 500 x 35 mm | approx. 26 kg/m² / 1.00 m
1,000 x 500 x 54 mm | approx. 33.4 kg/m² / 1.50 m *
1,000 x 500 x 84 mm | approx. 48 kg/m² / 2.10 m (incl. 30 mm base mat) **
1,000 x 500 x 114 mm | approx. 62.5 kg/m² / 3.00 m (incl. 60 mm base mat) ***
Tolerances: Length/width +/- 1% | thickness +/- 2mm
* REGUPOL climb FX50 (EPDM)
** REGUPOL climb FX50+30 (EPDM)
*** REGUPOL climb FX50+60 (EPDM)
Dimensions / Weight / Maximum fall height (Mulch)
1,000 x 500 x 50 mm / approx. 35 kg/m²
Tolerances: Length/width +/- 1% | thickness +/- 2mm
Maximum fall height
EPDM | up to 3.00 m, fall protection testing according to the playground test DIN EN 1177 (HIC)
Mulch | 1.50 m Impact attenuation according to the playground test DIN EN 1177 (HIC)
Structure
Dual-layer structure, drainage grooves on the underside, central dummy joint on the top side, edges with dowel holes
(no drainage grooves for 30 mm)
Accessories
Plug-in dowels, one-component adhesive sealant
Installation
On concrete, asphalt or compacted bed of crushed stone / gravel
Fire classification
Efl
Cfl -s1 available as a custom-made product
Slip resistance
R 10
Service
Product sample service, individual worldwide consulting, external certification, internal quality certificates, lines and lettering.
